Kebab HS

[Option for UV printer UJF-3042MkII e, UJF-3042MkII EX e, UJF-6042MkII e and UJF-7151 plusII]
Direct UV print 360° while the cylindrical object rotates.
Up to 3x faster productivity & Supports tapered materials.

Cylindrical objects 360º Direct Printing! *Gradient angle 0 to 7.5°

"Kebab" is an optional (additive function) system for the "UJF" series of flatbed UV printers. In addition to printing on flat surfaces with the printer alone, this system enables 360 deg printing on the sides of cylindrical materials such as bottles and tumblers.

The "Kebab HS" has achieved max. 3 times the productivity of the current "Kebab MkII Series" and is also compatible with tapered materials such as glasses and cups, expanding the range of order-made goods that can be directly printed with a UV printer.

Product outlines

  • 360-degree direct uv printing on cylindrical products!
  • Easy mounting on the UV Inkjet Printer "UJF-3042MkII e", "UJF-3042MkII EX e", "UJF-6042MkII e", "UJF-7151 plusII"
  • Up to 3x faster productivity! *1 (compared to our current model)
  • Compatible withcylinders up to 100 mm (3.9 in) diameter, 300 mm (11.8 in) length*2, and 7.5° taper
  • Taper warp correction added to RasterLinkTools
  • RasterLink7 makes print job management simple

*1 UJF-6042MkII e, 600x1200 dpi 16 Pass, W+CMYK, 100 mm (3.9 in) diameter, 200 mm (7.9 in) length. Speed varies depending on printer and output settings.
*2 Up to 280 mm (11.0 in) with adaptors (standard attachment).

Kebab HS installation image

When using Kebab HS, simply fix the Kebab HS main unit to your UJF series print table, and installation is completed in about 10 minutes. Our certified service engineers will explain the user operation at the first time using the system, making it easy for anyone to install.

UJF-3042MkII e + Kebab HS

UJF-3042MkII e + Kebab HS

Kebab HS main unit

Kebab HS main unit

Printing image with UJF-6042MkII e + Kebab HS

Printing image with UJF-6042MkII e + Kebab HS

Compatible printer model

UJF-3042MkII e

UJF-3042MkII EX e

UJF-6042MkII e

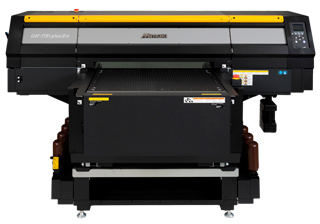

UJF-7151 plusII

Kebab HS Catalog (1.12MB)pdf file


Kebab HS Compatible printer model: UJF-3042MkII e, UJF-3042MkII EX e, UJF-6042MkII e, UJF-7151 plusII
