Mimaki Shutdown Procedures

Information


For more information please visit Mimaki Technical support page: Support Page


For Mimaki products including FAQs or OS/SW compatibility with our software products.


Call Mimaki Australia on (02) 8036 4502.


Please check the below equipment for Shutdown Procedures and enjoy your holidays.


CJV300 / CJV150 Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 5-12 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 5-12

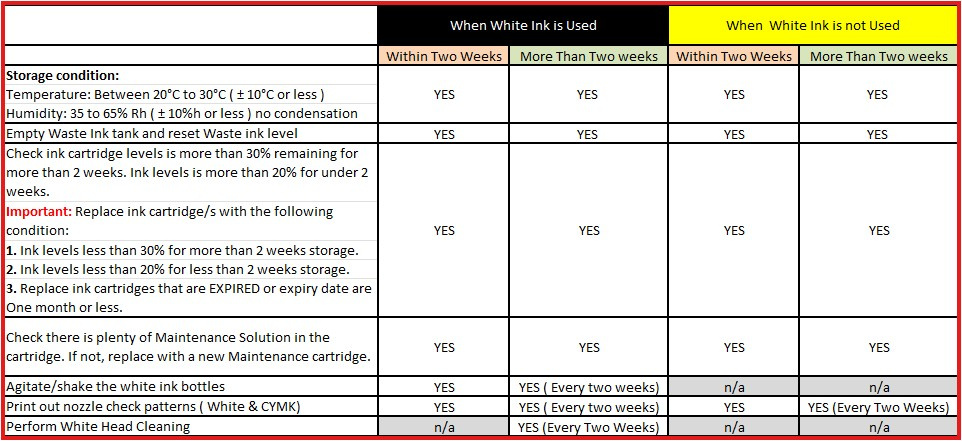

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




JV300 / JV150 Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 4-11 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 4-11

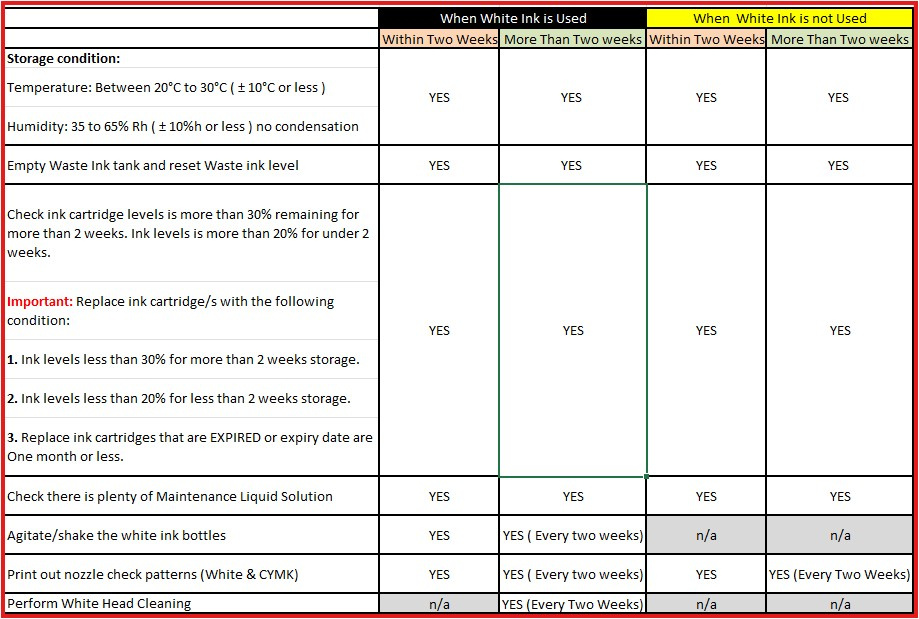

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




UCJV Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link - Scroll to Page 2 English): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 5-10 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 5-10

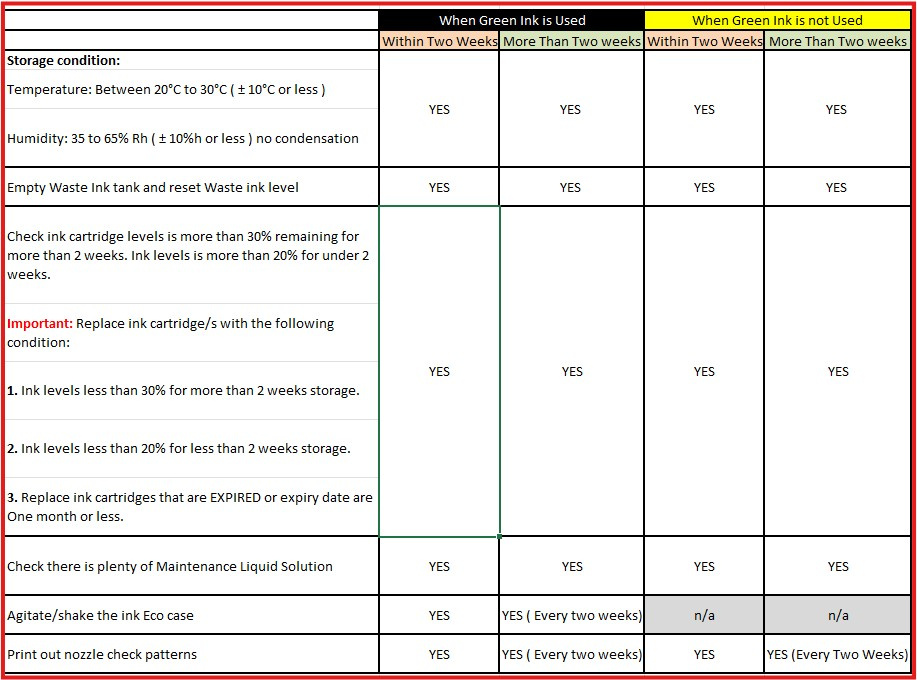

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




JV400LX Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 4-13 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 4-13

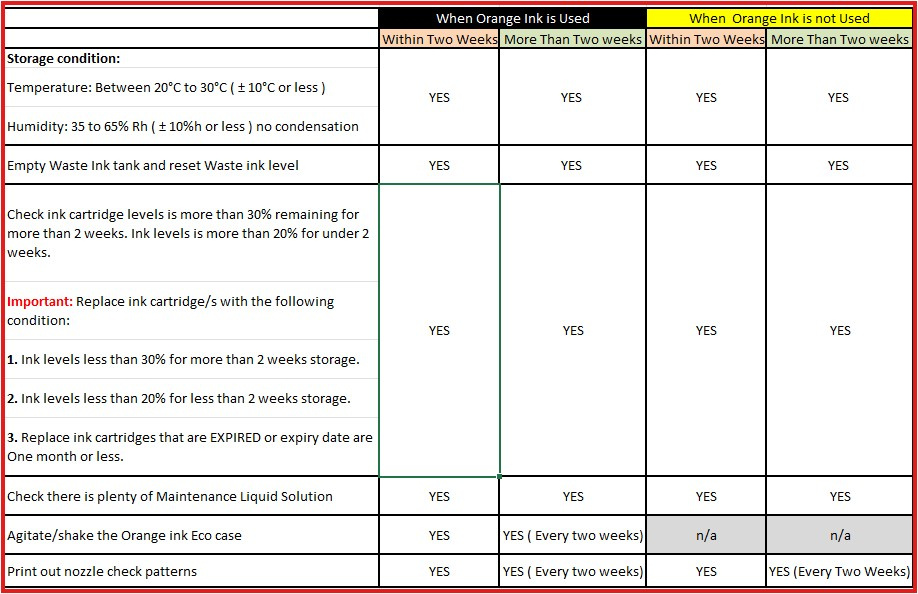

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




UJF-MKII Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 4-9 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 4-9

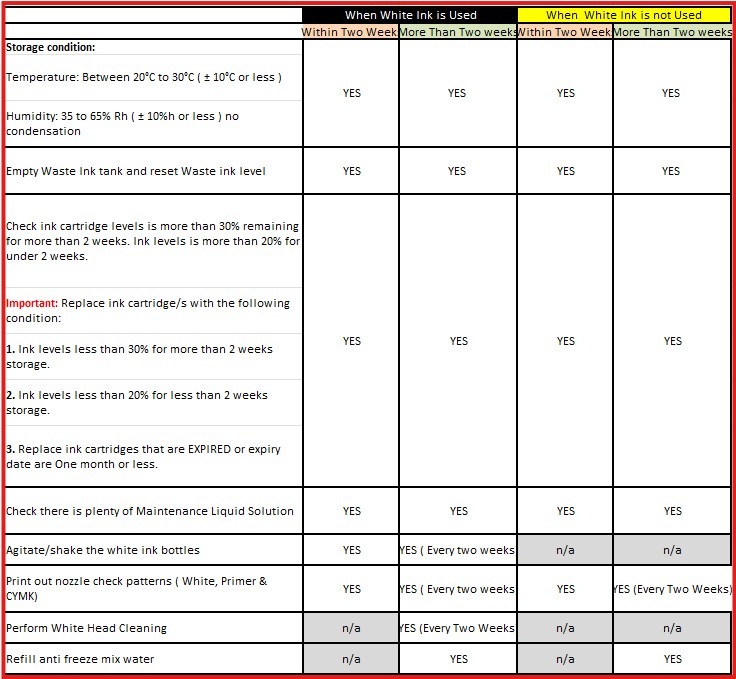

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




JFX200 Series - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 4-13 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 4-13

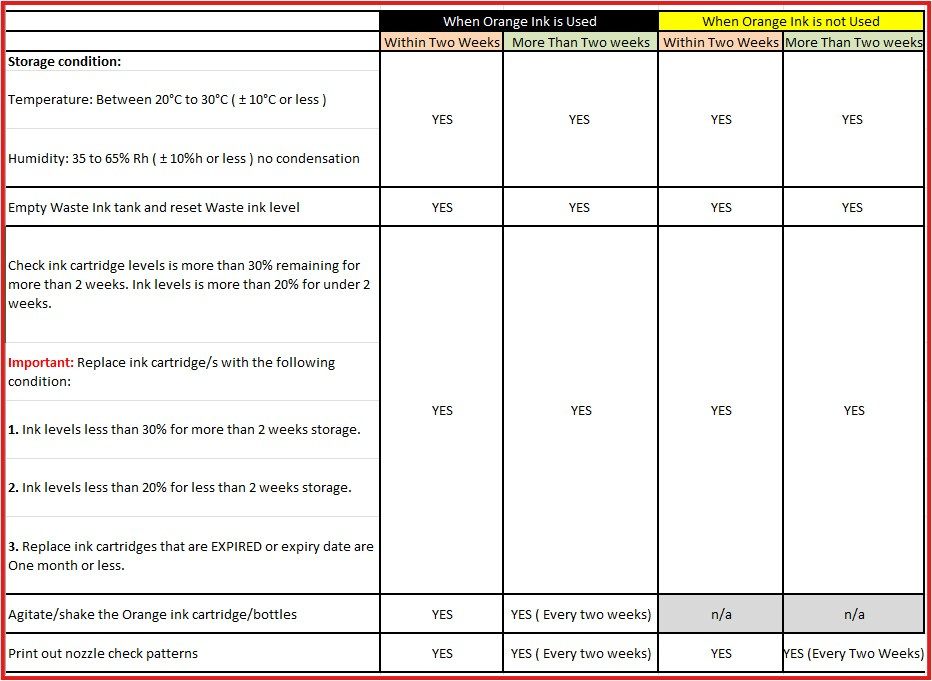

3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.




JFX500-2131 - Shutdown Procedures

Please follow the below instructions for short and long term storage:


1. Perform the Daily and Weekly maintenance (refer to Requests for Care and Maintenance or click on the link): Daily and Weekly Care


2. Perform CUSTODY WASH (refer to Operation Manual Chapter 4-8 “When the Machine is Not Use for a Long Time” or click on the link to access the Operation Manual: Custody Wash - Please go to Chapter 4-8


3. Refer to below chart before powering off the machine from the control panel. Important: Do not power off the machine from the switch or wall socket.
